OSI model



OSI Model



http://www.cisco1900router.com/wp-content/uploads/2013/03/1-tutorial-osi-7-layer-model.gif
The Open Systems Interconnection model (OSI model) is a theoretical model that describes and institutionalizes the correspondence elements of a telecom or figuring framework without respect to their fundamental interior structure and innovation. Its objective is the interoperability of differing correspondence frameworks with standard conventions. The model parcels a correspondence framework into reflection layers. The first form of the model characterized seven layers.

A layer serves the layer above it and is served by the layer underneath it. For instance, a layer that gives blunder free interchanges over a system gives the way required by applications above it, while it calls the following lower layer to send and get bundles that involve the substance of that way. Two occurrences at the same layer are imagined as associated by a flat association in that layer.

The model is a result of the Open Systems Interconnection venture at the International Organization for Standardization (ISO), kept up by the recognizable proof ISO/IEC 7498-1.



Description of OSI layers:

At every level N, two substances at the conveying gadgets (layer N peers) trade convention information units (PDUs) by method for a layer N convention. Each PDU contains a payload, called the administration information unit (SDU), alongside convention related headers and/or footers.

Information preparing by two imparting OSI-perfect gadgets is done in that capacity:
  1. The information to be transmitted is formed at the highest layer of the transmitting gadget (layer N) into a convention information unit (PDU).
  2. The PDU is gone to layer N-1, where it is known as the administration information unit (SDU).
  3. At layer N-1 the SDU is connected with a header, a footer, or both, creating a layer N-1 PDU. It is then gone to layer N-2.
  4. The procedure proceeds until achieving the lowermost level, from which the information is transmitted to the accepting gadget.
  5. At the accepting gadget the information is gone from the most minimal to the most noteworthy layer as a progression of SDUs while being progressively stripped from every layer's header and/or footer, until achieving the highest layer, where the remainder of the information is devoured.
Some orthogonal perspectives, for example, administration and security, include the greater part of the layers (See ITU-T X.800 Recommendation). These administrations are gone for enhancing the CIA triad - privacy, honesty, and accessibility - of the transmitted information. By and by, the accessibility of a correspondence administration is dictated by the cooperation between system plan and system administration conventions. Proper decisions for both of these are expected to ensure against refusal of administration.



Layer 1: Physical Layer

http://image.slidesharecdn.com/osi-model-1225038567632819-9/95/osi-model-of-networking-23-728.jpg?cb=1225013472
The physical layer of Parallel SCSI works in this layer, as do the physical layers of Ethernet and other neighborhood, for example, Token Ring, FDDI, ITU-T G.hn, and IEEE 802.11 (Wi-Fi), and also individual region systems, for example, Bluetooth and IEEE 802.15.4. It characterizes the electrical and physical determinations of the information association. It characterizes the relationship between a gadget and a physical transmission medium (e.g., a copper or fiber optical link, radio recurrence). This incorporates the design of pins, voltages, line impedance, link details, signal planning and comparable attributes for associated gadgets and recurrence (5 GHz or 2.4 GHz and so on.) for remote gadgets.



 Layer 2: Data Link Layer

http://image.slidesharecdn.com/osi-model-1225038567632819-9/95/osi-model-of-networking-25-728.jpg?cb=1225013472
The information join layer gives hub to-hub information exchange—a connection between two specifically associated hubs. It recognizes and potentially redresses mistakes that may happen in the physical layer. It, in addition to other things, characterizes the convention to build up and end an association between two physically associated gadgets. It additionally characterizes the convention for stream control between them.





                                                                    Layer 3: Network Layer

http://image.slidesharecdn.com/osi-model-1225038567632819-9/95/osi-model-of-networking-27-728.jpg?cb=1225013472
The system layer gives the useful and procedural method for exchanging variable length information arrangements (called datagrams) starting with one hub then onto the next associated with the same system. It makes an interpretation of consistent system address into physical machine address. A system is a medium to which numerous hubs can be associated, on which each hub has a location and which licenses hubs associated with it to exchange messages to different hubs associated with it by only giving the substance of a message and the location of the destination hub and giving the system a chance to discover the best approach to convey the message to the destination hub, potentially directing it through middle of the road hubs. On the off chance that the message is too substantial to be in any way transmitted starting with one hub then onto the next on the information join layer between those hubs, the system may execute message conveyance by part the message into a few sections at one hub, sending the pieces freely, and reassembling the sections at another hub. It might, yet require not, report conveyance mistakes.



 Layer 4: Transport Layer

https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjlrgl43_YTcpvZUiGqP6MtiUOj2405T44BnZb9BS6wDCXnpL-JIT5T6MTqcPQi_AH89UhdGoSB_LjB9_rg0Cd4P_-dj6ZI80JJLmCELuWrrHa7W2e_8FbyzDeWHHt_nvWT1NaGf1ajK7z6/s1600/Picture5.pngThe vehicle layer gives the utilitarian and procedural method for exchanging variable-length information groupings from a source to a destination host by means of one or more systems, while keeping up the nature of administration capacities.

The vehicle layer controls the unwavering quality of a given connection through stream control, division/desegmentation, and blunder control. A few conventions are state-and association arranged. This implies the vehicle layer can monitor the fragments and retransmit those that fall flat. The vehicle layer additionally gives the affirmation of the fruitful information transmission and sends the following information if no blunders happened.



                                                                                         Layer 5: Session Layer

http://image.slidesharecdn.com/osi-model-1225038567632819-9/95/osi-model-of-networking-31-728.jpg?cb=1225013472
The session layer controls the discoursed (associations) between PCs. It sets up, oversees and ends the associations between the nearby and remote application. It accommodates full-duplex, half-duplex, or simplex operation, and builds up checkpointing, dismissal, end, and restart systems. The OSI model made this layer in charge of agile close of sessions, which is a property of the Transmission Control Protocol, furthermore for session checkpointing and recuperation, which is not normally utilized as a part of the Internet Protocol Suite.

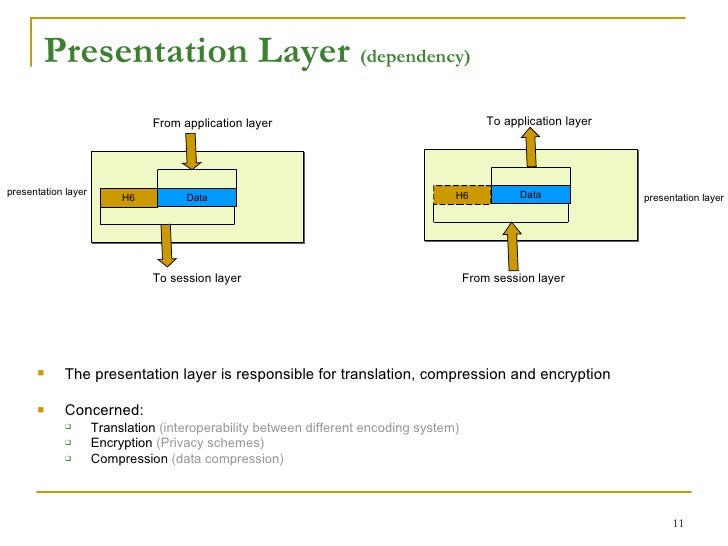

Layer 6: Presentation Layer

http://image.slidesharecdn.com/osi-model-1229703806485609-1/95/osi-model-11-728.jpg?cb=1229675759
The presentation layer builds up setting between application-layer substances, in which the application-layer elements may utilize distinctive linguistic structure and semantics if the presentation administration gives a mapping between them. On the off chance that a mapping is accessible, presentation administration information units are exemplified into session convention information units, and went down the convention stack.

This layer gives autonomy from information representation (e.g., encryption) by interpreting amongst application and system designs. The presentation layer changes information into the structure that the application acknowledges. This layer designs and scrambles information to be sent over a system.



                                                                                      Layer 7: Application Layer

http://image.slidesharecdn.com/osi-model-1225038567632819-9/95/osi-model-of-networking-35-728.jpg?cb=1225013472
The application layer is the OSI layer nearest to the end client, which implies both the OSI application layer and the client collaborate specifically with the product application. This layer interfaces with programming applications that execute a conveying part. Such application programs fall outside the extent of the OSI model. Application-layer works commonly incorporate recognizing correspondence accomplices, deciding asset accessibility, and synchronizing correspondence. While distinguishing correspondence accomplices, the application layer decides the personality and accessibility of correspondence accomplices for an application with information to transmit. Everything at this layer is application-particular.
